What makes injection mold design crucial to the success of the manufacturing process? Well-designed molds enable consistent part quality, efficient production cycles, and cost control. Whether you’re an engineer, product manager, or procurement specialist, understanding the strategic role of injection mold design is indispensable. This article delves into design principles, key features, and best practices—offering valuable guidance for anyone involved in mold-based manufacturing.
Why Is Injection Mold Design So Important?
Part Quality: Molds determine final geometry, surface finish, and structural integrity.
Production Efficiency: Optimal designs reduce cycle times and scrap rates.
Cost Management: Well-designed molds minimize material waste and maintenance needs.
What Are the Core Components of Injection Mold Design?

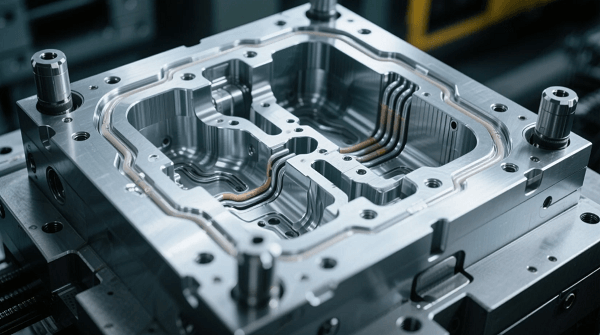

Mold Cavity & Core
These define the part’s form. Molded features such as ribs, bosses, and undercuts rely on precise cavity design.
Gates and Runners
They control molten plastic flow. Gate type (e.g., pin, edge, or tunnel) influences aesthetics and filling behavior.
Ejector Systems
Efficient ejection—via pins, sleeves, or plates—prevents part damage, shortens cycles, and maintains consistency.
Cooling Channels
Balanced cooling avoids warpage. Spiral or conformal channels are often integrated via advanced techniques like conformal cooling.
Mold Material Selection
Tool steels (e.g., P20, H13) are selected for volume, cycle count, and part demands. Surface treatments (e.g., nitriding) extend tool life.
How Does Design Boost Manufacturing Efficiency?
Cycle Time Optimization: Thin walls and rapid cooling reduce cycle to seconds.
Reduced Scrap: Uniform cavity filling avoids short shots and sink marks.
Tool Longevity: Stress relief, surface texturing, and wear resistance reduce wear.
What Specific Features Affect Quality?
Draft Angles & Wall Thickness
Essential for part ejection and consistent filling. Non-uniform walls lead to defects.
Venting and Air Release
Proper vents prevent burn marks and voids, especially in deep or enclosed geometries.
Runner Balance Strategy
Multiple cavities require pressure-balanced runners to ensure consistent part quality.
Mold Flow Simulation
Software enables virtual design testing—identifying issues like imbalanced flow or hot spots before production starts.
What Trends Are Shaping Injection Mold Design?
Conformal Cooling Channels using additive manufacturing reduce cycle time by 20–30%.
Multi-cavity & family molds maximize output per cycle.
Automation-Ready Tooling for robotics, sensors, and integration with Industry 4.0.
Hybrid Tooling using both steel and aluminum for fast prototypes with feasibility for later production.
常见问题
Q1: How long does a typical mold last?
High-quality steel molds can yield 500,000+ cycles; aluminum may only yield 10,000–50,000.
Q2: What tooling material should I choose?
For high volumes or abrasive plastics, H13 steel is standard. Low volume? Aluminum may suffice.
Q3: How much does a mold cost?
Basic prototype molds start near $5,000. Complex, multi-cavity steel molds can exceed $100,000.
Q4: Can I avoid design issues after production starts?
Use mold flow simulation and early-stage prototype molds to catch major issues before final tooling.
Q5: Should cooling always be conformed channels?
Not always. Traditional drilled channels are effective in simple geometries. For complex designs, conformal cooling yields better results.
结论
By asking “What makes injection mold design so critical?”, it’s clear that strategic design underpins part quality, cycle efficiency, and budget control. A well-optimized mold pays dividends through production consistency, durability, and cost savings. Apply best practices in mold design, material choice, cooling, and ejection strategies—and your plastic manufacturing will thrive long-term.
